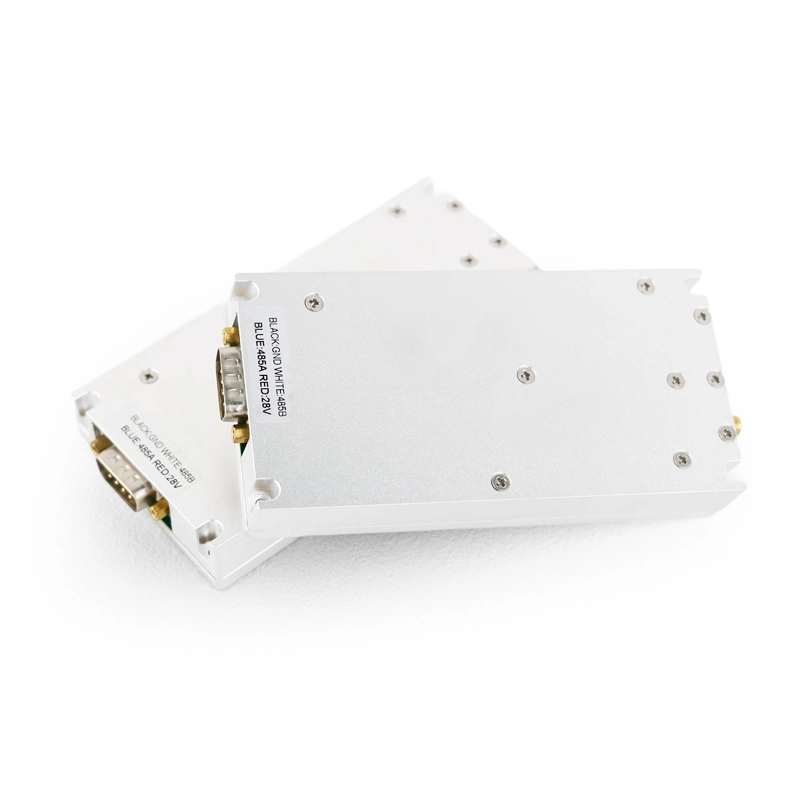

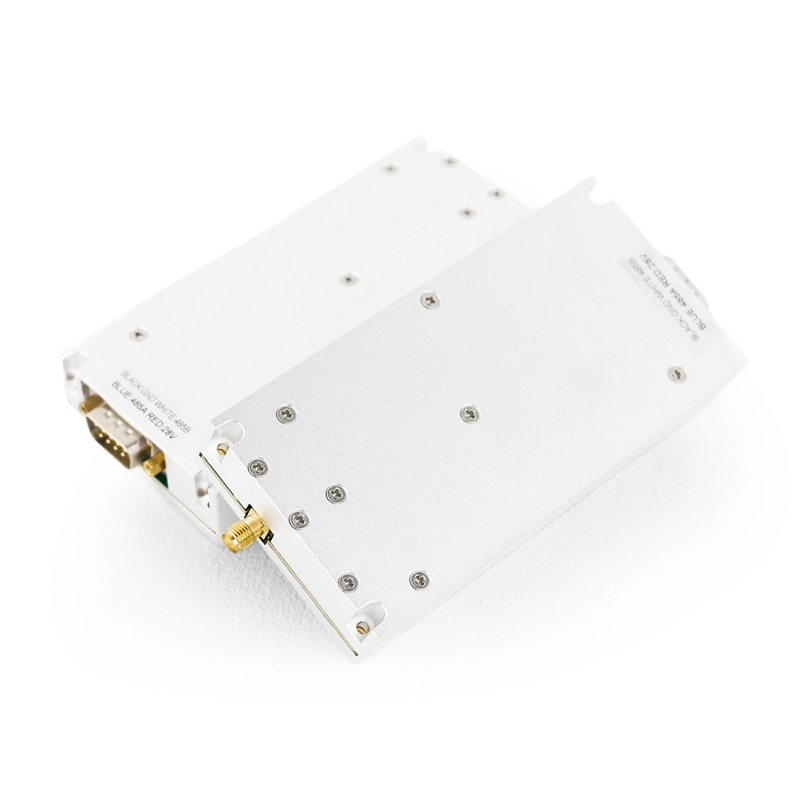

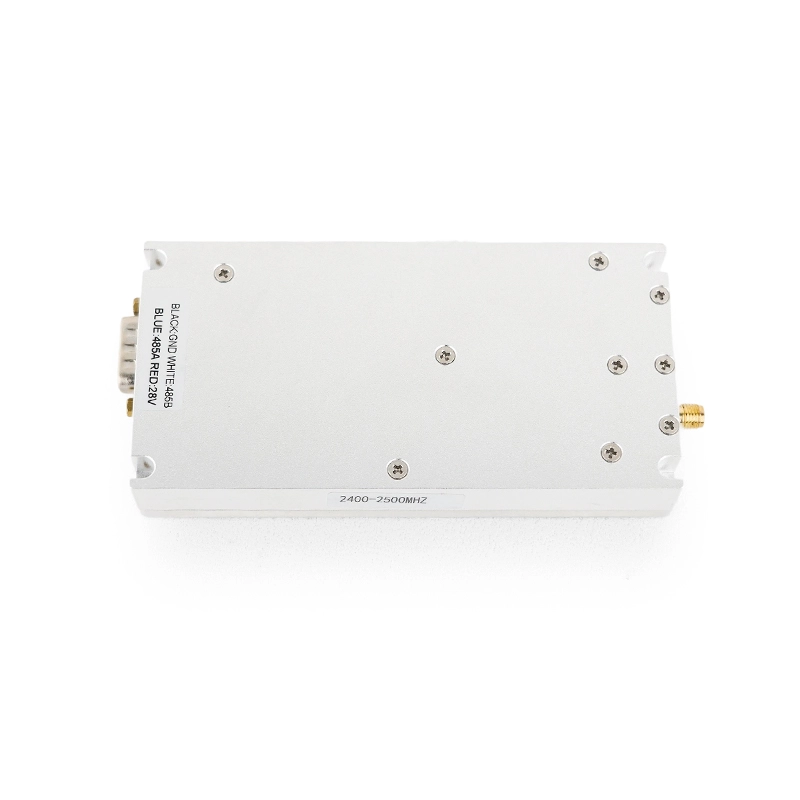

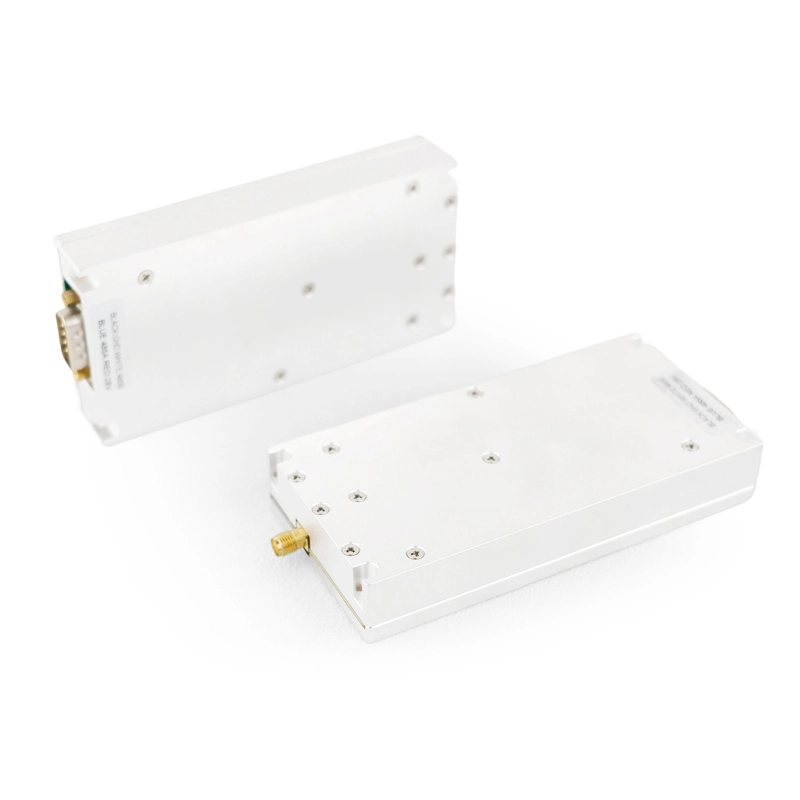

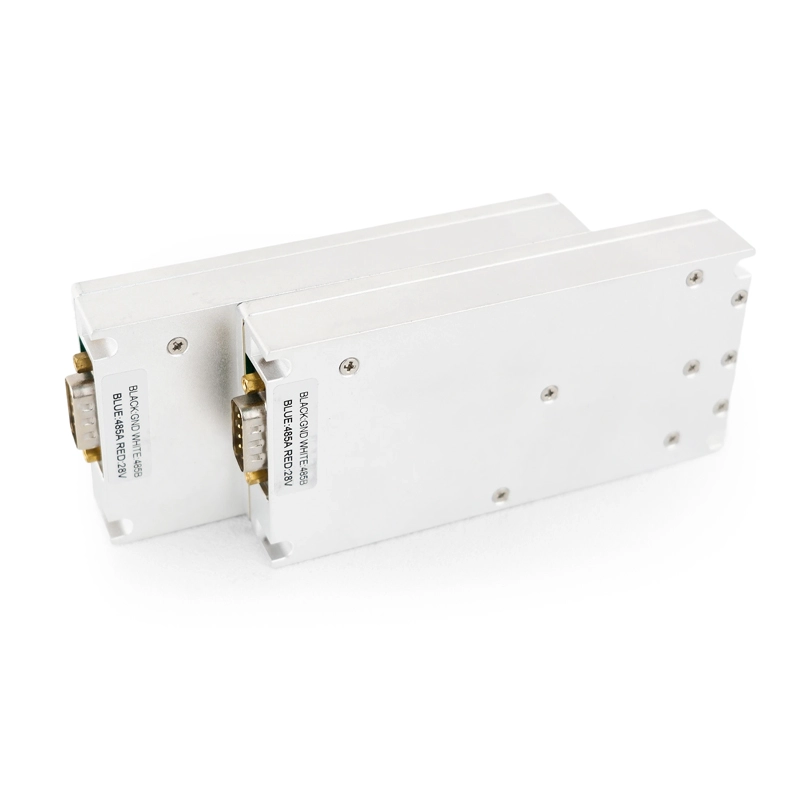

XINANKO 100W PA Power Amplifier Module + DDS Signal Source Module
Product Parameters
DDS Signal Source Product Features:
1.Wide Frequency Range: Supports a frequency range of 100MHz to 6GHz with a maximum bandwidth of 350MHz. Both frequency and bandwidth are configurable via command interface.
2.Modulation Support: Compatible with ASK, FSK, and PSK modulation schemes.
3.Flexible Sweep Control: Sweep interval and dwell time are programmable through command settings.
4.Adjustable Output Power: Output power is adjustable over a dynamic range of 30dB.
Power Amplifier Module Product Parameters:
| Item name | Technical parameters |
| Working frequency |
300-1500MHz (Customizable to any frequency) |
| Saturated output power | 50±1dBm |
| Gain | 50±2dB |
| In-band fluctuation | ≤2.0dB |
| Out-of-band spurious |
9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz |
| Input VSWR | ≤1.5 |
| Gain temperature stability | ≤±1.5dB |
| Working voltage | DC+28V |
| Working current | 50dBm@≤6.5A |
| Powersupplymonitoring interface |
Power supply: power line Red: power positive, black: power negative, white: power amplifier enabled |
| Output RF port | N |
| Dimensions | 170*90*25mm |
